String PCS E²C2000

Powering the Future with Smart Energy Conversion

The E²C2000 PCS seamlessly connects energy storage batteries with the power grid, efficiently managing charging and discharging cycles. As a critical component of energy storage systems, it ensures reliable energy conversion between the battery, grid, and load—maximizing efficiency, stability, and performance.

Product advantages
Safe & Reliable
IP66-rated high protection level for durability ✅ Partitioned heat dissipation ensures stable system operation Multiple safety protections, including DC reverse connection and system grounding Integrated with BMS and EMS for comprehensive fault protection
Advanced Performance
Ultra-fast charge/discharge switching within 30ms Rapid dispatch response, achieving target output in 30ms High & low voltage ride-through for superior grid adaptability Wide operating range with full-voltage long-term overload capability
Efficient Conversion
ANPC topology delivers 99.06% maximum efficiency Hybrid vector modulation algorithm enhances overall system performance Automatic wave-sealing technology minimizes standby loss
Feature-Rich Functionality
Supports multiple control modes: VSG, VF, PQ, etc. Flexible operation with intelligent & planned charging/discharging Four-quadrant operation, ensuring full-load active & reactive power output

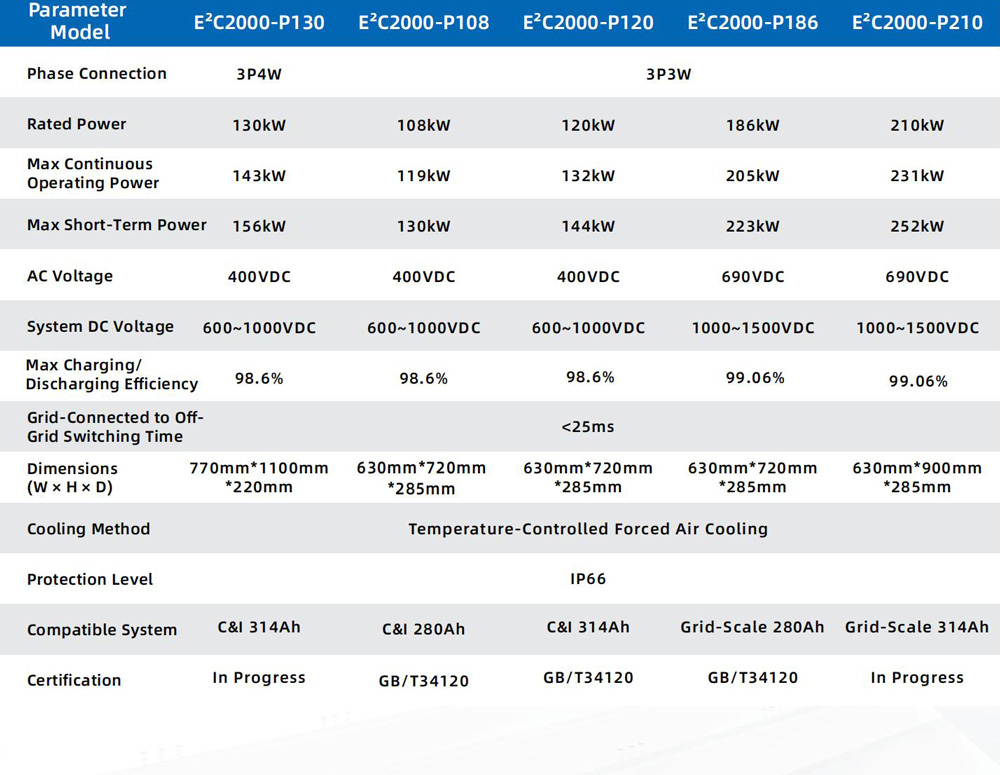

Technical parameter table
