Safely Harness Every Kilowatt-Hour of Electricity

Introducing eⁿ: The Industry’s First Matrix-Based ESS pioneers the Next Generation of Energy Storage Solutions

home > Product Center

E³MATRIX-C1000 (SECOND GENERATION ENERGY STORAGE SYSTEM)

The E³MATRIX-C1000 is a cabinet-type energy storage system that integrates battery clusters, energy storage inverters, thermal management systems, and fire safety systems. It is designed with an AC input of 380V, making it suitable for industrial and commercial energy storage applications and various other energy scenarios.

Key Features:

· Three-Phase Imbalance Control: Ensures balanced energy distribution and enhances system stability, optimizing energy storage and utilization.

· Comprehensive Integration: Combines essential components such as battery clusters, inverters, and safety systems into a unified solution for simplified installation and operation.

· Adaptability: Ideal for a range of applications, including industrial and commercial energy storage, supporting diverse energy needs.

Product advantages
Safe and reliable
The system features battery pack-level fire protection composite monitoring, utilizing perfluorohexanone and backup water fire protection for accurate and rapid fire intervention. A pack-level liquid cooling solution ensures that the temperature difference of battery cells within the control cabinet remains within 5°C. The battery and converter components are organized into partitions, and the battery pack is sealed to isolate arcs and flammable gases, providing additional fire protection.
Multiple discharge
Active variable frequency liquid cooling, along with the parallel connection of pipelines between packages, significantly enhances heat dissipation efficiency, reducing power consumption by up to 30%. The system incorporates NPC power topology combined with a hybrid vector modulation algorithm, boosting charging cycle efficiency by 1%.
Long life
The system uses a wide-range speed-regulating fan to extend the service life of the fan. Additionally, the adoption of IGBT packaging technology with high thermal stability enhances the overall reliability and longevity of the system.
Increase revenue
The modular design of the system enables a short construction period, minimal footprint, and reduced initial investment costs. It also benefits from intelligent operation and maintenance, cloud-based monitoring, and the ability to operate autonomously, all of which contribute to improved system efficiency and cost savings.

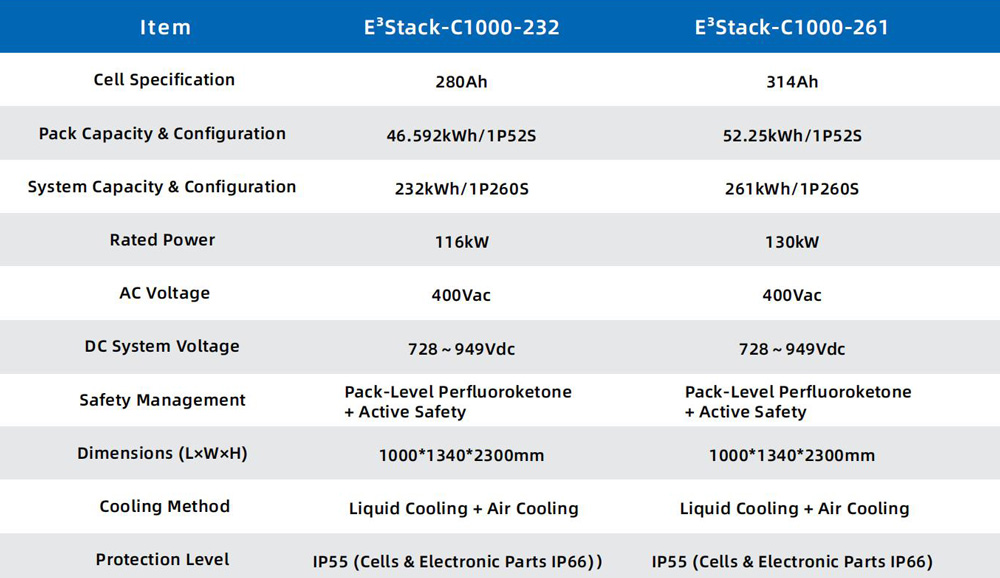

Technical parameter table
