PET SUPER CHARGING MATRIX E⁴ MATRIX-SC

The PET direct-mounted supercharging matrix integrates power electronic transformers, flexible charging stacks, and power electronic battery stacks. It features full-chain power electronics with direct medium voltage 10kV access, adopting an efficient DC architecture and a fully modular design that is both efficient and flexible. The charging power and terminal interface are designed separately, allowing charging power to be shared across various terminals. Energy storage and photovoltaic DC systems are seamlessly integrated to offer an extremely complete, simple, fast, and effective "four-pole" charging experience.

Product Advantages

Extremely complete

Combines voltage transformation, energy storage, and charging functions in one system. Supports V2G (Vehicle-to-Grid) and peak load shaving. Enables photovoltaic DC access. Capable of extreme, super, and fast charging.

Minimalism

Fully modular design for flexible expansion. High-frequency technology replaces industrial frequency, offering high density and compactness. DC bus architecture allows for free adaptation.

Extreme Speed

Supports ultra-fast charging at 750KW, providing a 100km range in just 1 minute. High-frequency isolation, meeting national standard electrical isolation requirements. Bidirectional conversion supporting high-power V2G vehicle-to-grid interaction.

Extremely effective

Silicon technology replaces copper, eliminating no-load loss. Silicon carbide replacement ensures efficient conversion. Achieves up to 97.5% efficiency, more than 5% higher than traditional AC solutions.

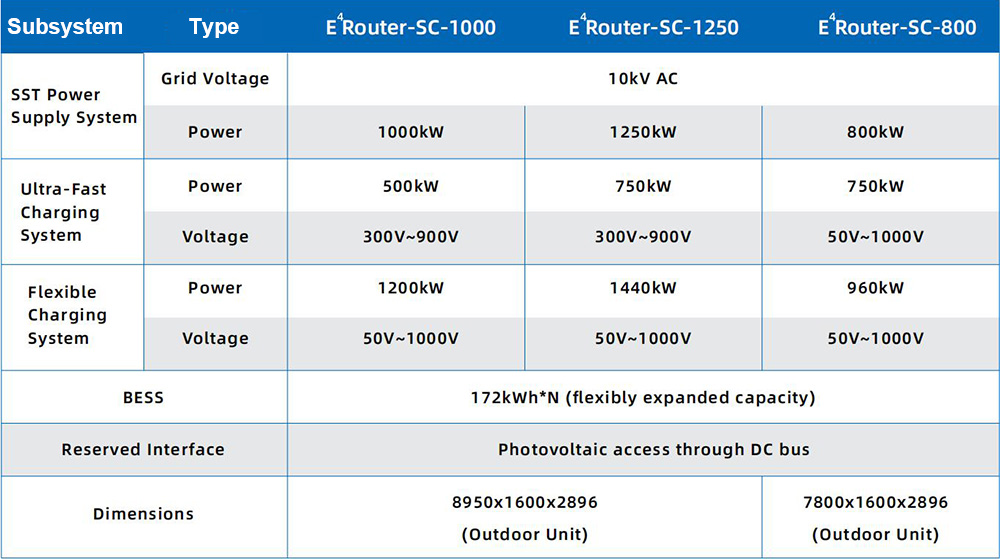

Technical parameter table
